30kg carton robot palletizing clamping fixture product introduction: this fixture is driven by four stepper motors, supporting ball screws, precision guide rails and suction cups. According to the customer's product, adjust the appropriate clamping stroke. After the fixture reaches the product positioning position , The sucker sucks and lifts the product, and the cylinder drives the claw to fix the product on the fixture, and then transport it to the designated position.

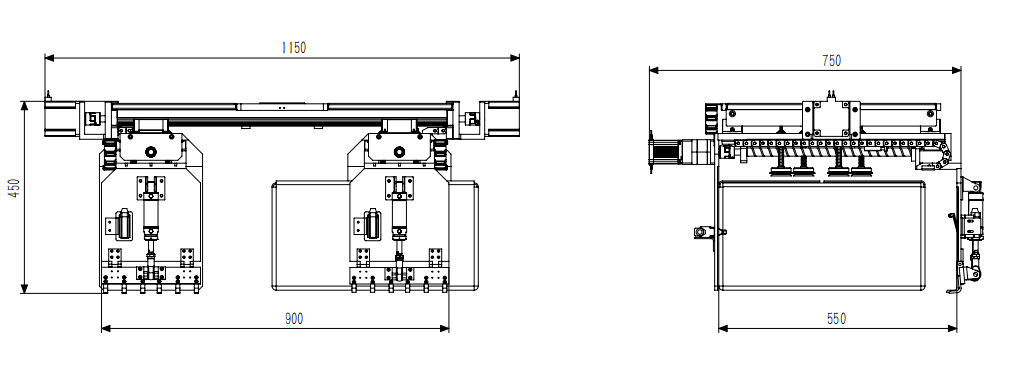

Product specifications: L1150*W550*H460
Material: Steel, etc.
Load: 20-30kg
Adapted robot model: the connecting flange of different robots can be customized, and the truss can also be matched
Customizable part: length, width and height
Function introduction features:
1. System program control: The signal interface and system interface of the fixture system and the supporting robot or truss adopts digital or PLC control signal transmission, so as to ensure mutual stability and reliability. It has two operation control modes: manual and automatic. In manual mode, a certain process can be operated independently, and in automatic mode, it will run automatically according to the set operation program.
2. Emergency stop interlocking function: If any emergency stop button is activated at will, the fixture can immediately stop the action being completed, and the equipment will resume normal operation only after the emergency stop is reset. 3. Movement and positioning: It can be directly edited through the operation panel and display screen. In theory, within the effective stroke range of the linear axis, through the stepper motor and the ball screw, the accuracy is within ±0.5mm.
